PCR Fluorescence Filter (imitation import) FAM, HEX, ROX, CY5, CY5.5, CY3 Replace Imported Filters
Name: PCR Fluorescence Filter (imitation import) FAM, HEX, ROX, CY5, CY5.5, CY3 Replace Imported Filters
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%
PCR Fluorescence Filter (imitation import) FAM, HEX, ROX, CY5, CY5.5, CY3 Replace Imported Filters
PCR Fluorescence Filter (imitation import)
FAM, HEX, ROX, CY5 (conventional)
CY5.5, CY3 (extended)

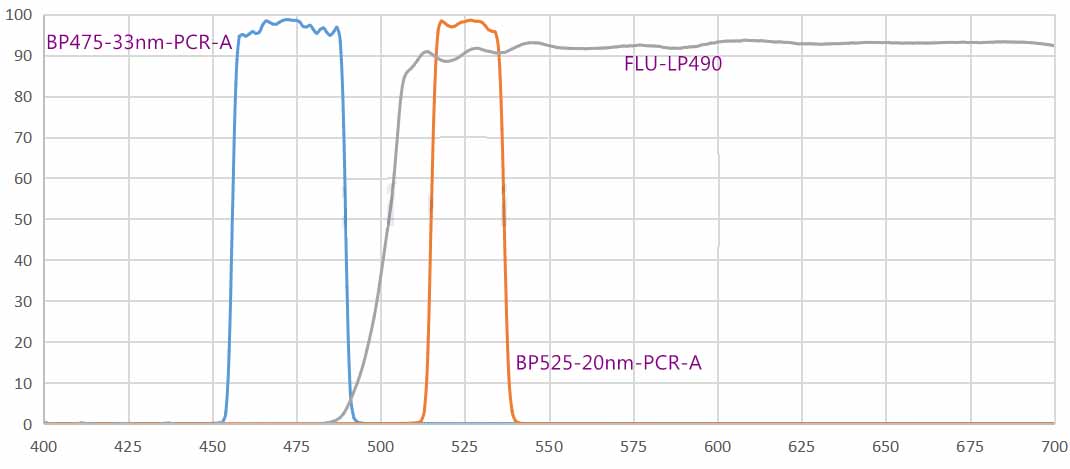

FAM
| BP475-33-YG-A | Fluorescence Filter | D25X3.5mm | 475-33-OD6-T90-200-800 |
| BP525-20-YG-A | Fluorescence Filter | D25X3.5mm | 525-20-OD6-T90-200-800 |
| FLU-LP495 | Long Pass Dichroic Mirror | 25.2X35.6X1.1mm | 45-HR400-480-HT510-750 |

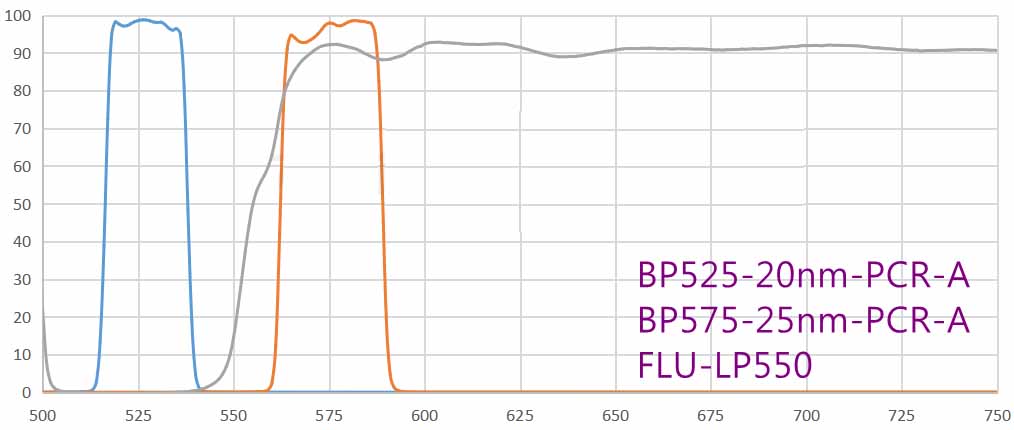

HEX
| BP525-20-YG-A | Fluorescence filter | D25X3.5mm | 525-20-OD6-T90-200-900 | PCR-HEX-A excitation |
| BP575-25-YG-A | Fluorescence filter | D25X3.5mm | 575-25-OD6-T90-200-900 | PCR-HEX-A emission |
| FLU-LP545 | Long pass dichroic mirror | 25.2X35.6X1.1mm | 550LPF560-750HT480-535HR | PCR-HEX-A dichroic |

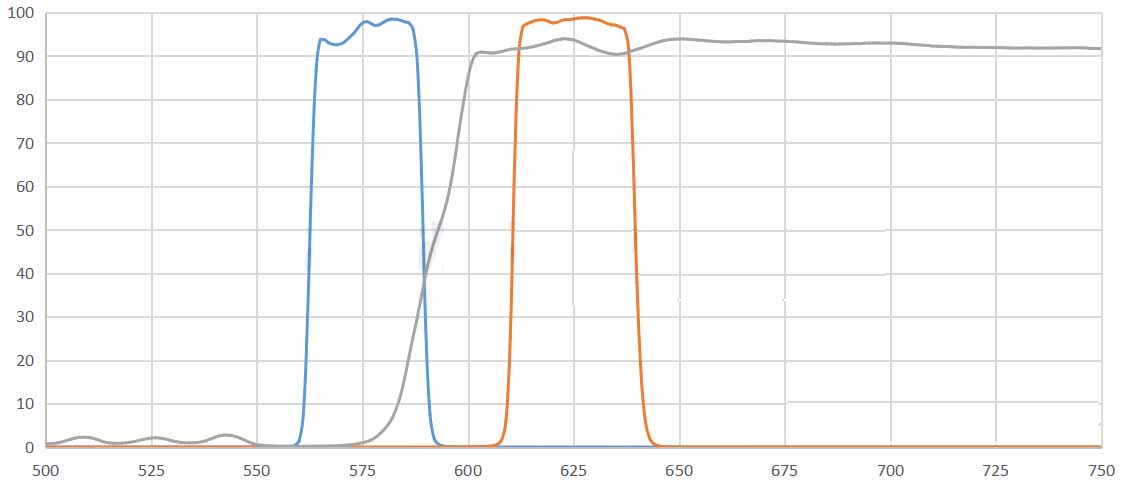

ROX
| BP575-25-YG-A | Fluorescence filter | D25X3.5mm | 575-25-T95-OD6-200-900 | PCR-ROX-A excitation |
| BP625-30-YG-A | Fluorescence filter | D25X3.5mm | 625-30-T95-OD6-200-900 | PCR-ROX-A emission |
| FLU-LP595 | Long pass dichroic mirror | 25.2X35.6X1.1mm | 590LPF610-700HT500-580HR | PCR-ROX-A two-way |

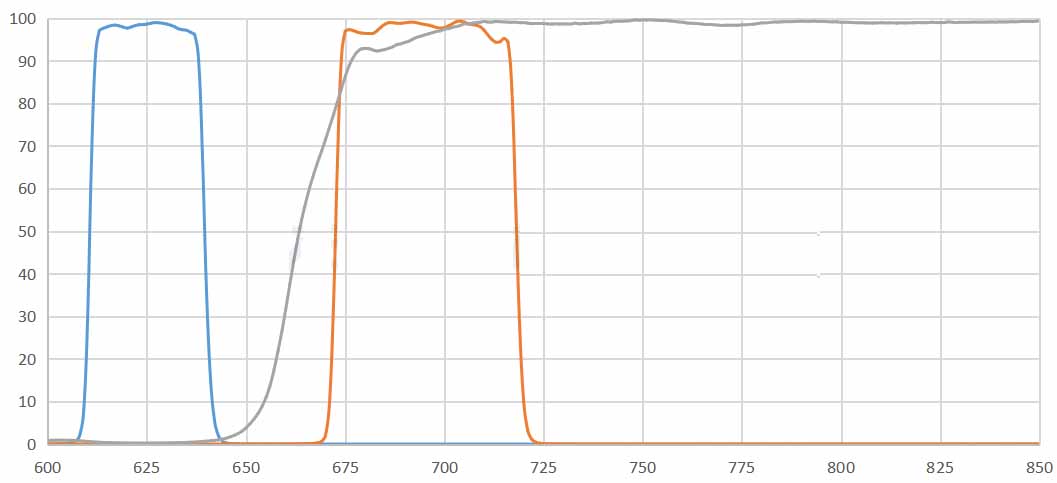

CY5
| BP625-30-YG-A | Fluorescence filter | D25X3.5mm | 625-30-T95-OD6-200-900 | PCR-ROX-A excitation |
| BP692-45-YG-A | Fluorescence filter | D25X3.5mm | 692-45-T95-OD6-200-900 | PCR-CY5-A emission |
| FLU-LP655 | Long pass dichroic mirror | 25.2X35.6X1.1mm | 660LPF670-800HT600-640HR | PCR-CY5-A two-way |

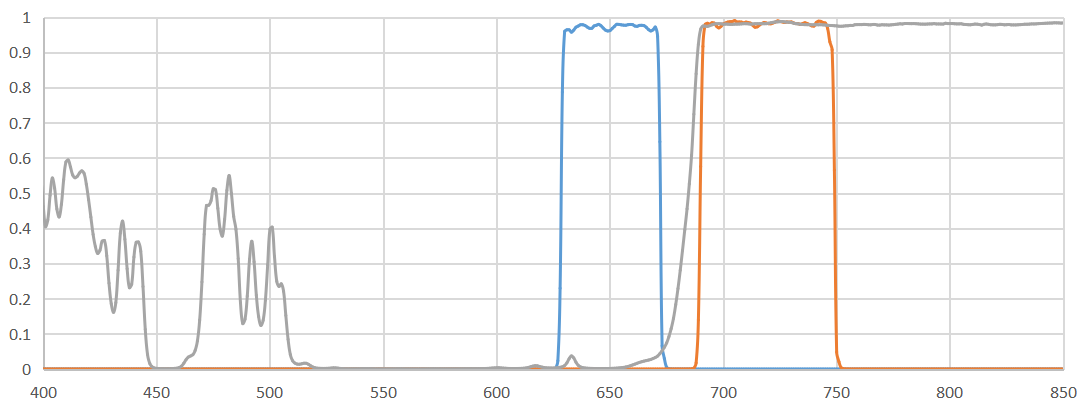

CY5.5
| BP660-20-YG-A | Fluorescence filter | D25X3.5mm | OD6-T90-200-800 |
| BP715-20-YG-A | Fluorescence filter | D25X3.5mm | OD6-T90-200-800 |
| FLU-LP690 | Long pass dichroic mirror | 25.2X35.6X1.1mm | 45-HR660-HT715 |
CY3
| BP543-20-YG-A | Fluorescence filter | D25X3.5mm | OD6-T90-200-800 |
| BP586-20-YG-A | Fluorescence filter | D25X3.5mm | OD6-T90-200-800 |
| FLU-LP545 | Long pass dichroic mirror | 25.2X35.6X1.1mm | 550LPF560-750HT480-535HR |
