LPF-SPF-BBP-M Series Lens Filters

Name: LPF-SPF-BBP-M Series Lens Filters
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

Features：

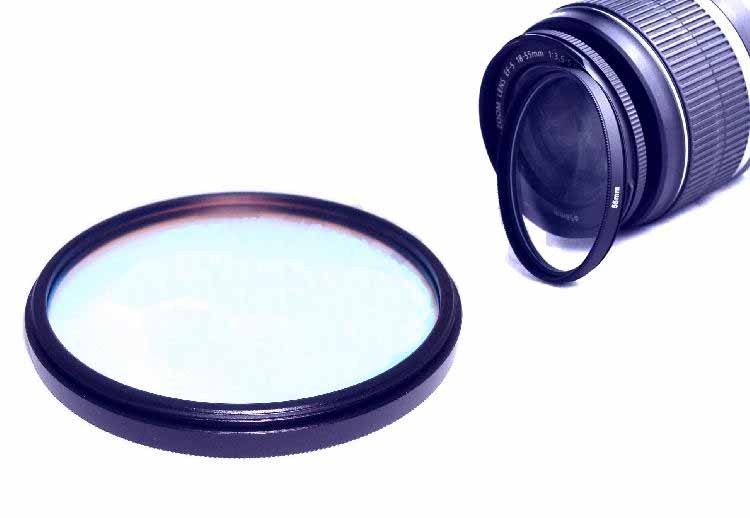

■Coating type optical filter, can be directly installed on the front port of the lens

■Provide SPF short-wave pass lens dedicated filter; LPF long-wave pass lens dedicated filter; BBP ultra-wideband lens dedicated filter

■High cut-off depth, high cut-off range, high transmittance

Applicable lens brands: Nikon, Canon, Sigma, Sony, Fuji, Pentax, Conaide, Tamron Computar and other civilian lenses and industrial lenses

Optional Outer ring for Matching Lens

M27	M30	M30.5	M37	M40.5	M43	M46	M49
M52	M55	M58	M62	M67	M72	M82	M82

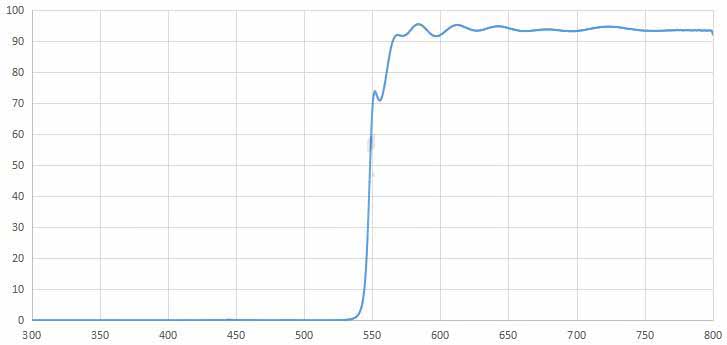

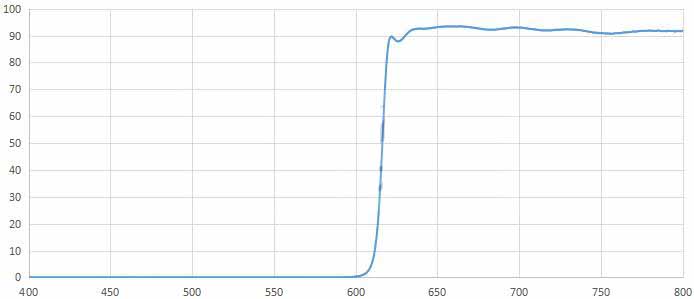

Long Wave Pass-Product Selection:

Model	Transmittance Wavelength
LPF400-M	＞400nm
LPF415-M	＞415nm
LPF425-M	＞425nm
LPF450-M	＞425nm
LPF470-M	＞470nm
LPF500-M	＞500nm
LPF515-M	＞515nm
LPF530-M	＞530nm
LPF550-M	＞550nm
LPF580-M	＞580nm
LPF590-M	＞590nm
LPF600-M	＞600nm
LPF610-M	＞610nm
LPF630-M	＞630nm
LPF645-M	＞645nm
LPF650-M	＞650nm
LPF665-M	＞665nm
LPF695-M	＞695nm
LPF700-M	＞700nm
LPF715-M	＞715nm
LPF750-M	＞750nm
LPF780-M	＞780nm
LPF800-M	＞800nm
LPF815-M	＞815nm
LPF830-M	＞830nm
LPF850-M	＞850nm
LPF900-M	＞900nm

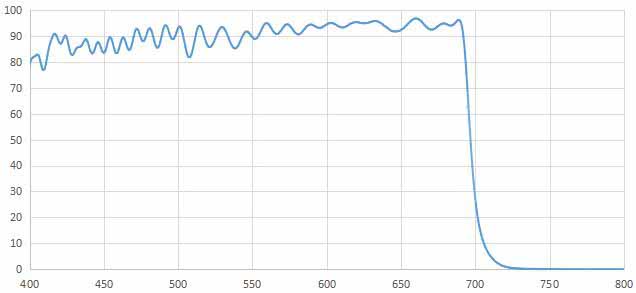

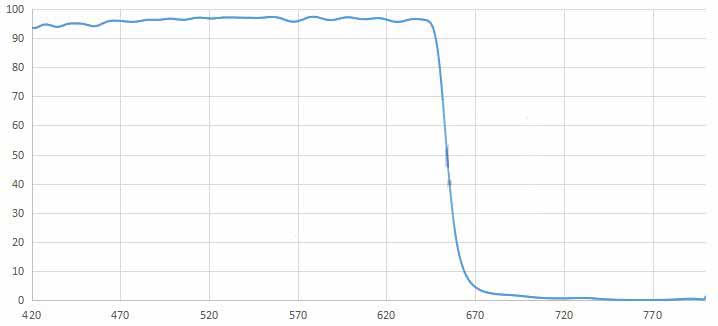

Short Wave Pass-Product Selection:

Model	Transmittance Wavelength
BBP400-500-M	400-500nm
BBP500-600-M	500-600nm
BBP600-700-M	600-700nm
BBP700-800-M	700-800nm
BBP800-900-M	800-900nm
BBP400-820-M	400-820nm
BBP450-750-M	450-750nm
BBP550-650-M	550-650nm
BBP400-700-M	400-700nm
BBP530-630-M	530-630nm
BBP500-800-M	500-800nm
