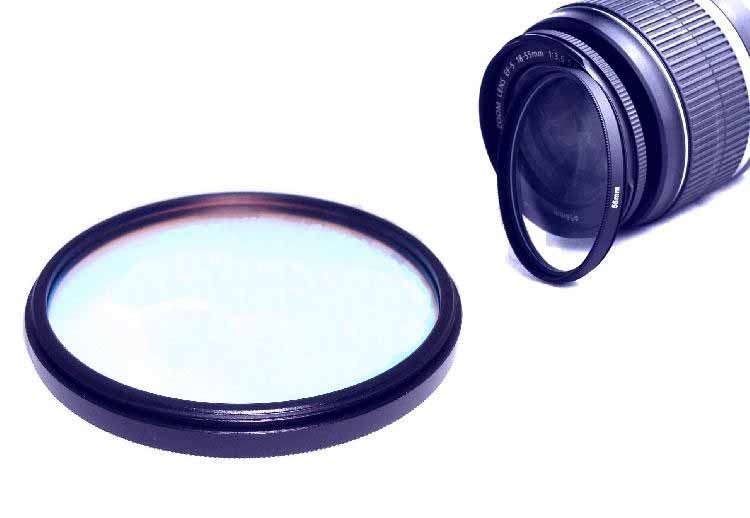

BP-M Series Lens Bandpass Filter

Name: BP-M Series Lens Bandpass Filter
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

BP-M series lens dedicated bandpass filter

Features：

■Coating type optical bandpass filter, can be directly installed on the front port of the lens

■Product performance is consistent with our company's BP series bandpass filter

■High cut-off depth, high cut-off range, high transmittance, excellent ability to suppress stray light

Applicable lens brands: Nikon, Canon, Sigma, Sony, Fuji, Pentax, Conaide, Tamron Computar and other civilian lenses and industrial lenses

Optional Outer Ring for Matching Lens

M27	M30	M30.5	M37	M40.5	M43	M46	M49
M52	M55	M58	M62	M67	M72	M82

Long Wave Pass-Product Selection:

Model	Transmittance Wavelength	Bandwidth
BP400-10-M	400nm	10nm
BP450-10-M	450nm	10nm
BP500-10-M	500nm	10nm
BP600-10-M	600nm	10nm
BP650-10-M	650nm	10nm
BP700-10-M	700nm	10nm
BP750-10-M	750nm	10nm
BP800-10-M	800nm	10nm
BP365-80-M	365nm	80nm
BP470-85-M	470nm	85nm
BP485-280-M	485nm	280nm
BP500-250-M	500nm	250nm
BP505-90-M	505nm	90nm
BP525-80-M	525nm	80nm
BP530-120-M	530nm	120nm
BP540-65-M	540nm	65nm
BP550-300-M	550nm	300nm
BP590-70-M	590nm	70nm
BP590-70-M	590nm	70nm
BP635-60-M	635nm	60nm
BP660-65-M	660nm	65nm
BP695-65-M	695nm	65nm
BP800-300-M	800nm	300nm
BP810-65-M	810nm	65nm
BP845-60-M	845nm	60nm
BP850-160-M	850nm	160nm
BP865-80-M	865nm	80nm
BP880-130-M	880nm	130nm

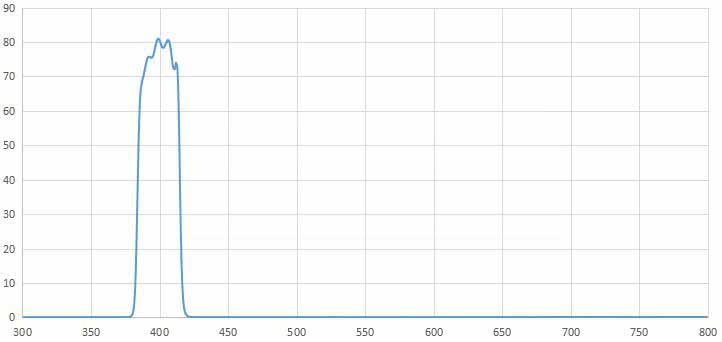

bandpass filter 400nm.jpg

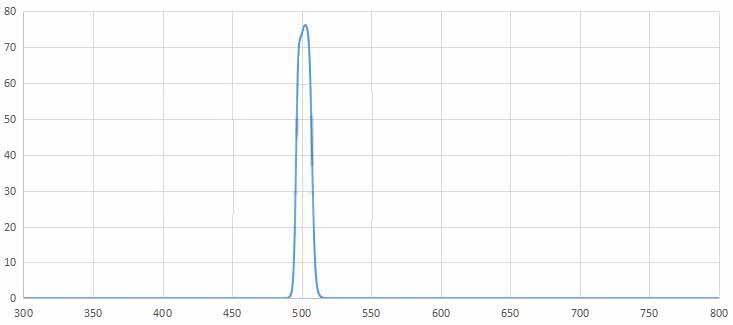

bandpass filter 500nm.jpg

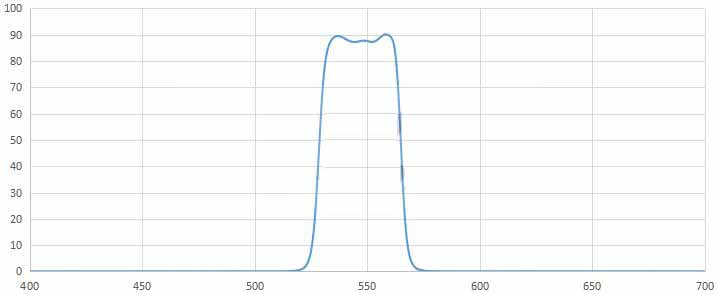

bandpass filter 550nm.jpg

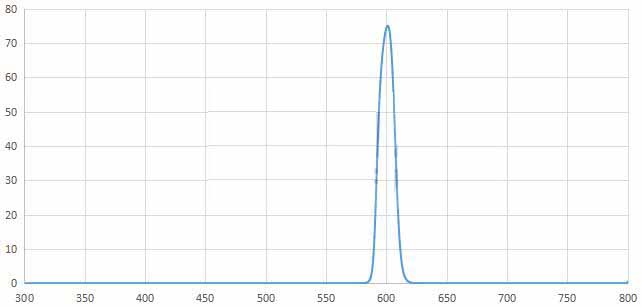

bandpass filter 600nm.jpg
